Description
OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU programming. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO PIN code, ECU recovery and so on. It's all by OBD or BENCH mode and makes ECU cloning easy.
WATCH ON YOUTUBE 60+ VIDEOS DEMONSTRATING THE DC706 FUNCTIONS
OBDSTAR DC706 ECU Tool Coverage List
OBDSTAR DC706 ECU Tool Functions
ECU Clone/ All by OBD or Bench
ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
ECM clone for motorcycles(Bosch, Delphi, EFI...)
TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)
Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)
OBDSTAR DC706 ECU Tool Supported ECU Manufacturers
ALPS
Autoliv
Bosch
Continental
Delphi
Denso
Johnson Controls
Lear
Magneti Marelli
Siemens
Temic
Valeo
OBDSTAR DC706 ECU Tool Supported Brands
Car:
ASTON MARTIN
BMW
FAW
FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
FORD/LINCOLN
GM/OPEL
HYUNDAI/KIA
LAND ROVER/JAGUAR
LUXGEN
MASERATI
MAZDA
MITSUBISHI
NISSAN
OPEL
PSA
SMART
SUBARU
SUZUKI
VOLVO
VW/AUDI/SEAT/SKODA
Motorcycle:
APRILIA
BRP
CFMOTO
DERBI
GILERA
GUZZI
PEUGEOT
PIAGGIO
QJBENELLI
VESPA
OBDSTAR DC706 ECU Tool Advanced Functions
1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
2. Support 200+ ECM types(Partial functions require P003 adapter.)
3. Support dozens of TCM types
4. Support 100+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
5. Support VW DQXXX (TCM) calibrate mileage
6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter.)
8. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
10. Support automatic identification
11. Strong help data files
12. All by OBD or Bench mode
More functions in developing...
OBDSTAR DC706 ECU Tool Different Configurations
Configuration | Software |
DC706_ EN A | ECM |
DC706_ EN_ B | TCM |
DC706_ EN_ C | BODY |
DC706_ EN D | ECM+TCM |
DC706_ EN E | ECM+B0DY |
DC706_ EN F | TCM+B0DY |
DC706_ EN_ FULL | ECM+TCM+BODY |
OBDSTAR DC706 ECU Tool Specifications:
Operation system |
Android 5.1.1 |
|
RK3128 quad-core ARM cortex A7 |
Battery |
3700mA, rechargeable polymer lithium battery |
Extension memory card |
32G micro SD (TF) card supported |
Storage capacity |
16GB |
LCD |
7.0 inch |
LCD resolution |
1024*600 |
Touch screen |
Capacitive touch screen |
Wifi | Supported |
Working temperature |
-20℃~55℃ (14℉~131℉) |
Storage temperature |
-20℃~70℃ (-4℉~158℉) |
Weight |
About 1.3kg |
Dimension |
243mm*148mm*36mm |

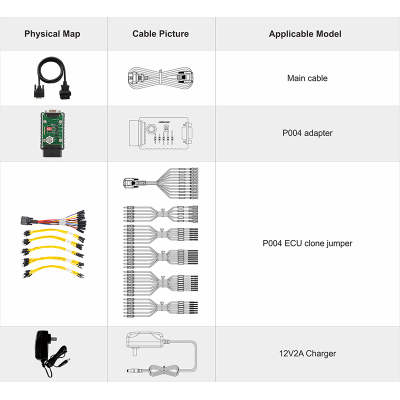

OBDSTAR DC706 ECU Tool Accessories:

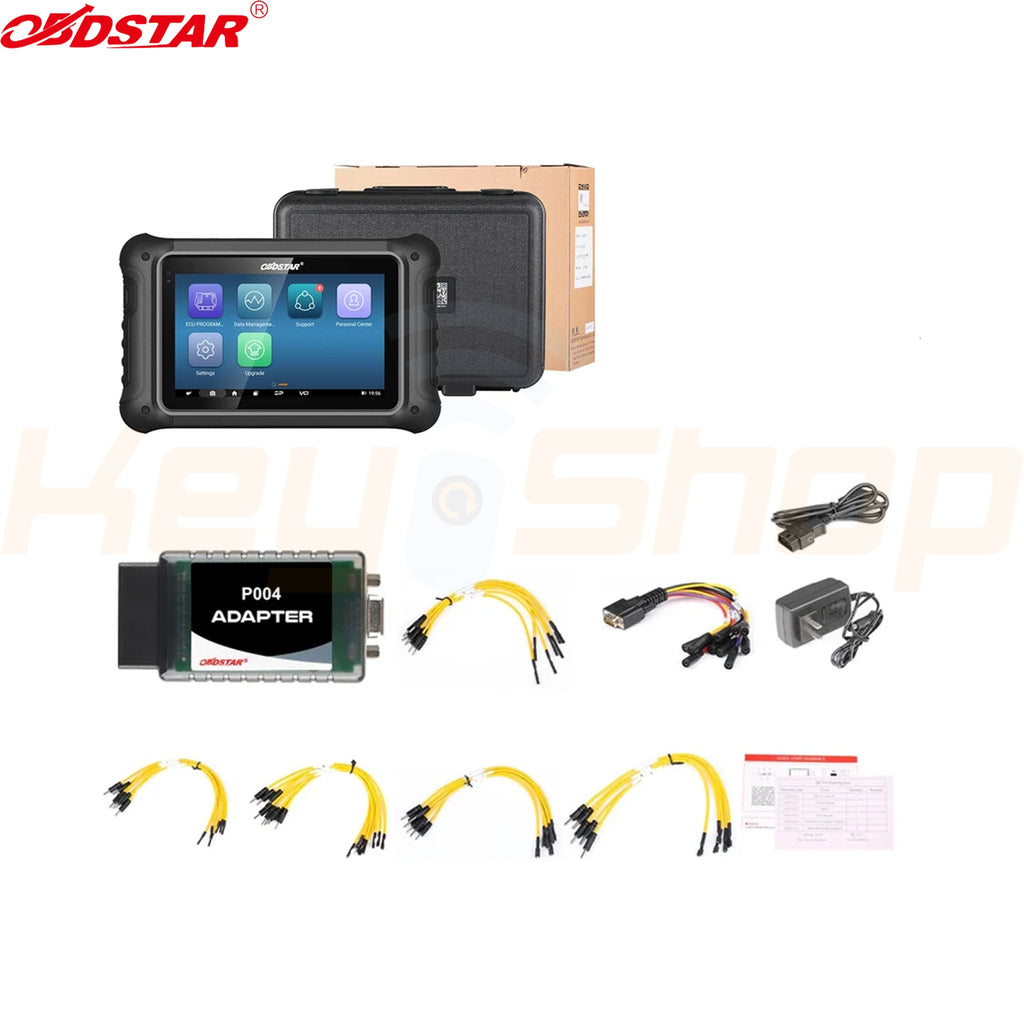

OBDSTAR DC706 ECU Tool Package Includes:
1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
