Description
Compatible parts: | 48700-1NC0A , 48700-1NC1A , 48700-1NC2A , 48700-1NC3A | ||
---|---|---|---|
Brand | Model | From Year | To Year |
Nissan | Murano | 2007 | 2014 |
Nissan | Maxima | 2008 | 2015 |
Nissan | 370Z | 2012 | 2018 |
Nissan | GT-R | 2012 | 2018 |
Nissan | Altima | 2008 | 2012 |
Nissan | Patrol | 2011 | 2023 |
Nissan | Juke | 2011 | 2019 |
Nissan | Micra | 2011 | 2023 |

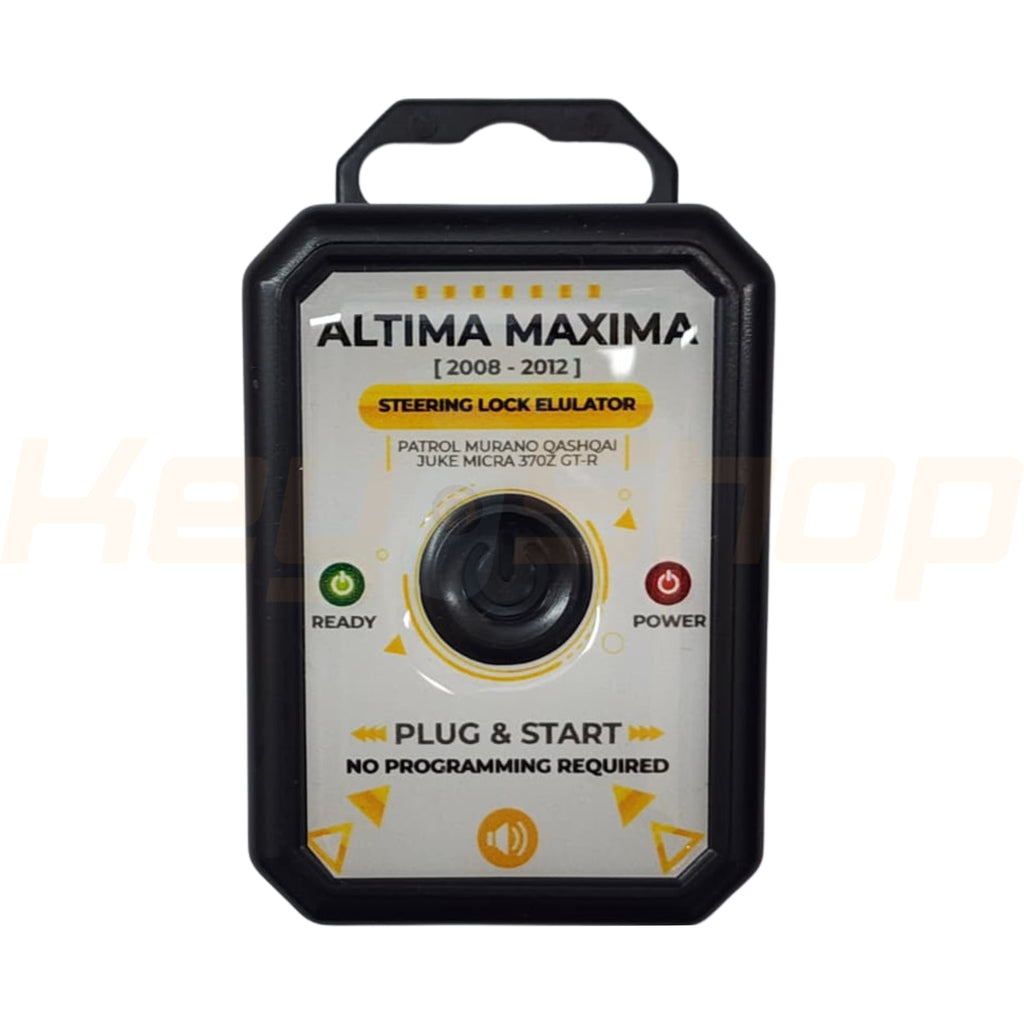

Nissan / Infiniti Steering Lock ESL ELV Emulator
An Electronic Steering Lock (ESL) emulator is a solution for a common issue in various Nissan models. A malfunctioning ESL is a mechanical failure that can occur without any other vehicle fault. When it happens, the working key will fail to start the car because the steering column lock is not activated. This often requires a costly and time-consuming replacement and programming of a new ELV at a dealership. This plug-and-play emulator provides a convenient and cost-effective alternative, fixing the malfunction by bypassing the ELV system.
This emulator is compatible with a range of Nissan vehicles and is a simple plug-and-play device that requires no coding. Its sound and LED indicators provide real-time status updates, making installation and diagnosis straightforward.
Installation Instructions
Follow these simple steps to install the emulator:
-
Turn Off the Vehicle: Make sure the car's ignition is completely off.
-
Access the SCL: Remove the cover from under the steering wheel to access the Steering Column Lock (SCL).
-
Disconnect the Faulty Unit: Unplug the cable from the defective SCL.
-

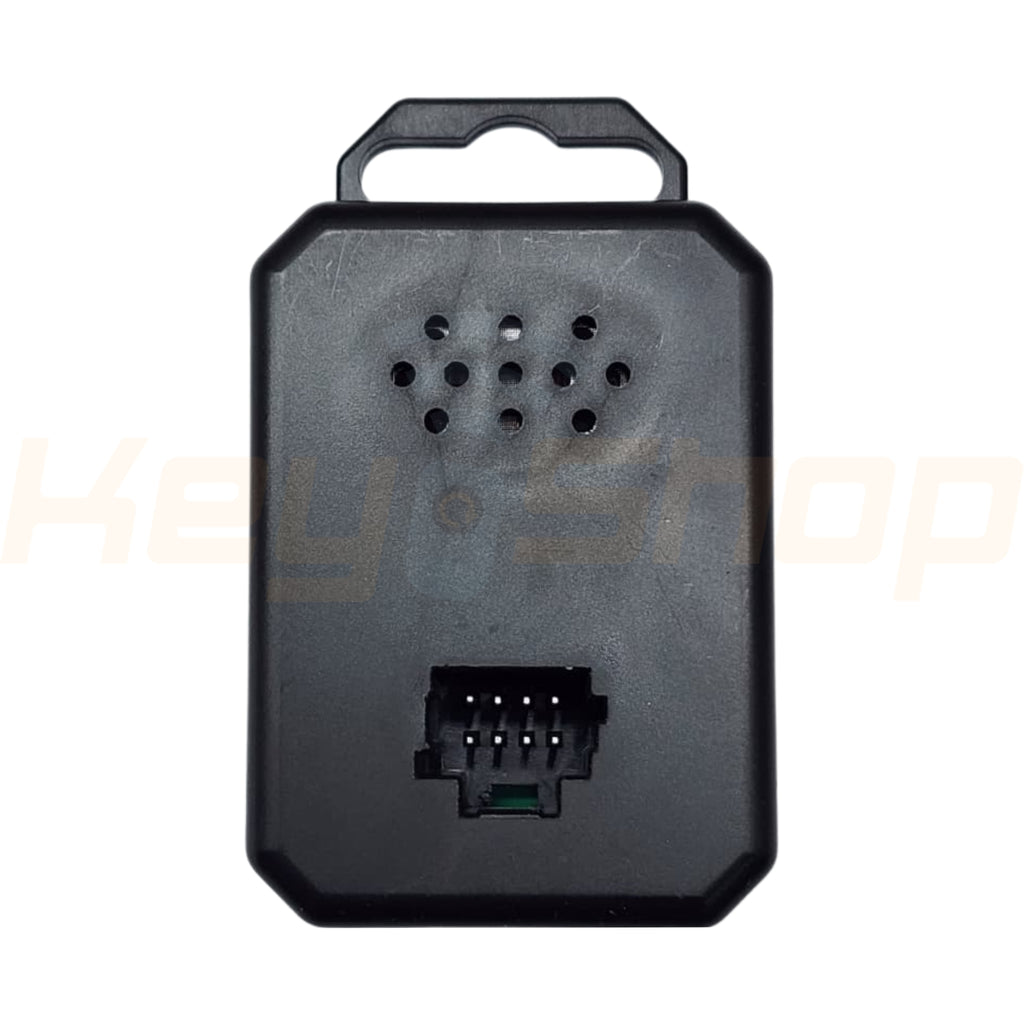

Connect the Emulator: Plug the SCL cable into the Emulator.
-
Turn On the Vehicle: Switch the car's ignition to the ON position.
-
Verify Status: The LED on the emulator should change from Red to Green, and an unlocking sound should be heard.
-
Start the Engine: You can now start the engine and drive.
Emulator Behavior
The emulator provides visual and audible feedback to indicate its status.
-
LED Indicators:
-
Green LED: The steering column lock (SCL) is unlocked.
-
Red LED: The SCL is locked.
-
-
Sound Indicator: An unlocking sound is played when the SCL is unlocked.
Vehicle Compatibility
This emulator is compatible with the following part numbers: 48700-1NC0A, 48700-1NC1A, 48700-1NC2A, and 48700-1NC3A.
It fits these Nissan models:
-
Nissan Maxima (2008-2015)
-
Nissan 370Z (2012-2018)
-
Nissan GT-R (2012-2018)
-
Nissan Altima (2008-2012)
-
Nissan Murano (2007-2014)
-
Nissan Micra (2011-2023)
-
Nissan Juke (2011-2019)
-
Nissan Patrol (2011-2023)
