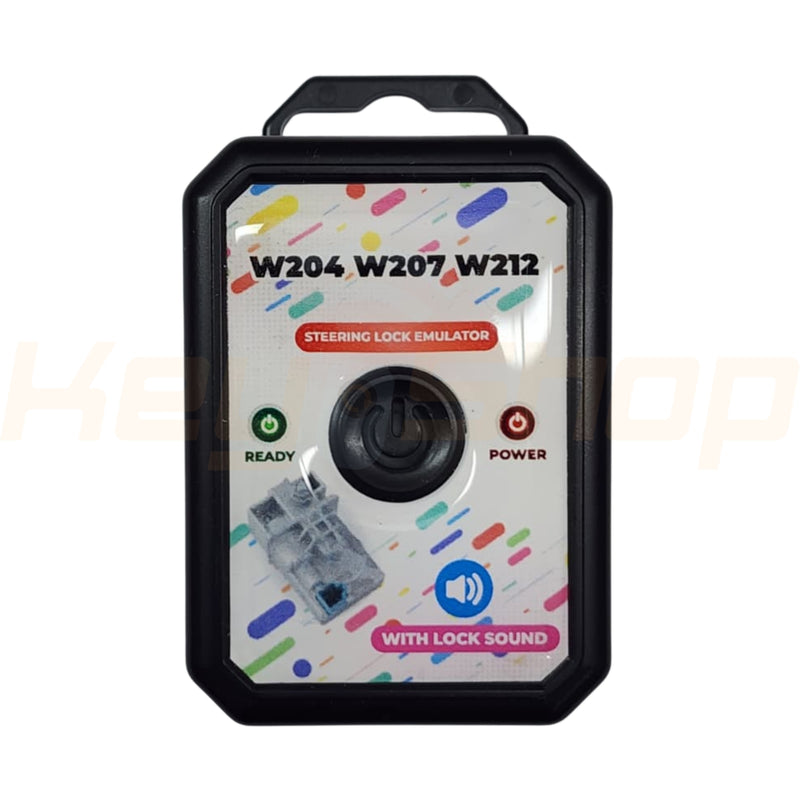

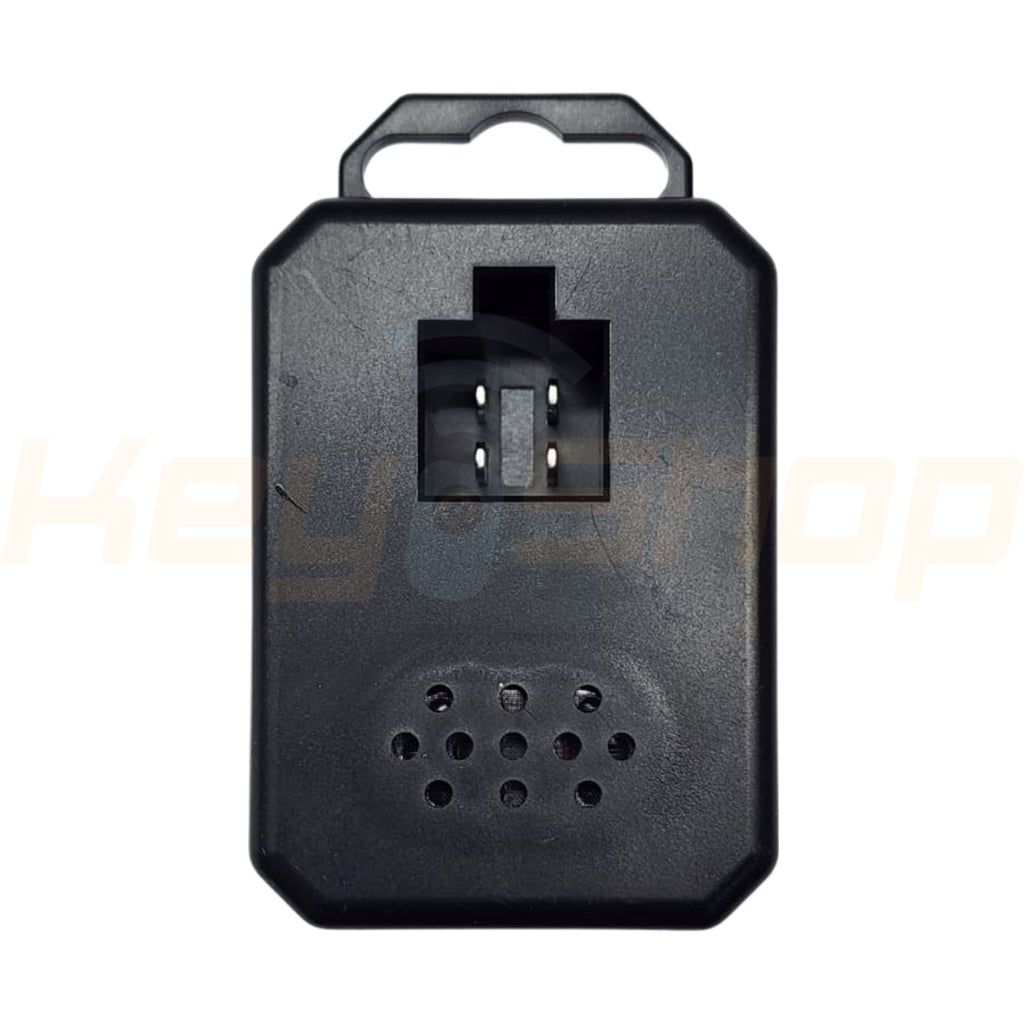

Electronic Steering Lock (ESL) Emulator for Mercedes-Benz: A Solution for W204, W207 & W212 Models
A common issue in Mercedes-Benz vehicles from 2007 to 2014, including the W204, W207, and W212 models, is the failure of the electronic steering lock (ESL). Resolving this problem at a dealership can be costly and time-consuming, as it involves ordering and programming a new steering lock unit. This emulator provides a more convenient and cost-effective alternative.
Key Features and Benefits
The Mercedes ESL emulator is a simple device designed to bypass the faulty steering lock. Unlike traditional repairs, which may lead to future failures, this emulator offers a durable solution. It is also reprogrammable, allowing it to be used on different vehicles as needed.
-
Ease of Use: This emulator is very easy to use, making the process of bypassing the steering lock straightforward.
-
Reprogrammable: The device can be used multiple times on different cars.
-
Compatibility: The emulator is compatible with a wide range of Mercedes key programming devices.
-
Status Indicator: The built-in LED light provides real-time feedback on the programming status.
Installation and Programming Guide
-
Disconnect: Unplug the wire from the original steering lock unit on the vehicle.
-
Reprogramming: If the steering lock is in the locked position, you must first remove it from the car.
-
Password Retrieval: Use a compatible Mercedes key programmer to calculate the EIS (Electronic Ignition Switch) password.
-
Connect and Program: Program the ESL emulator using your Mercedes key programming device.
-
Final Installation: Connect the emulator to the car's wiring and start the vehicle.
LED Status Behavior
The LED light on the emulator provides a clear indication of its status, helping you troubleshoot during installation and use.
-
Green Light: A solid green light indicates that the programming was successful, and the car is ready to start. The unlocking sound will also be played.
-
Red Light: A red light means there was a problem with the programming procedure or the key does not match the EIS/EZS. This indicates the steering lock is locked.
-
No Light: If the LED does not turn on at all, check the power supply to the car or the cable connections.
Supported Devices and Models
This emulator is a versatile tool compatible with popular key programming devices and various Mercedes-Benz EIS modules.
-
Compatible Key Programmers:
-
Xhorse VVDI MB BGA / Key Tool Plus
-
Abrites AVDI
-
CGDI MB
-
Autel IM508 / IM608
-
-
Supported EIS/EZS Modules:
-
W204 EIS
-
W207 EIS
-
W212 EIS (with steering lock)
-
