Detect CAS & Key Synchronization Solder-free Matching CAS Data Read, Write and Program
Note: This Test Platform is for slot shaped keys, not mechanical remote heads, it cannot be used standalone, it must be used with the GODIAG GT100+ or GT100 Pro.

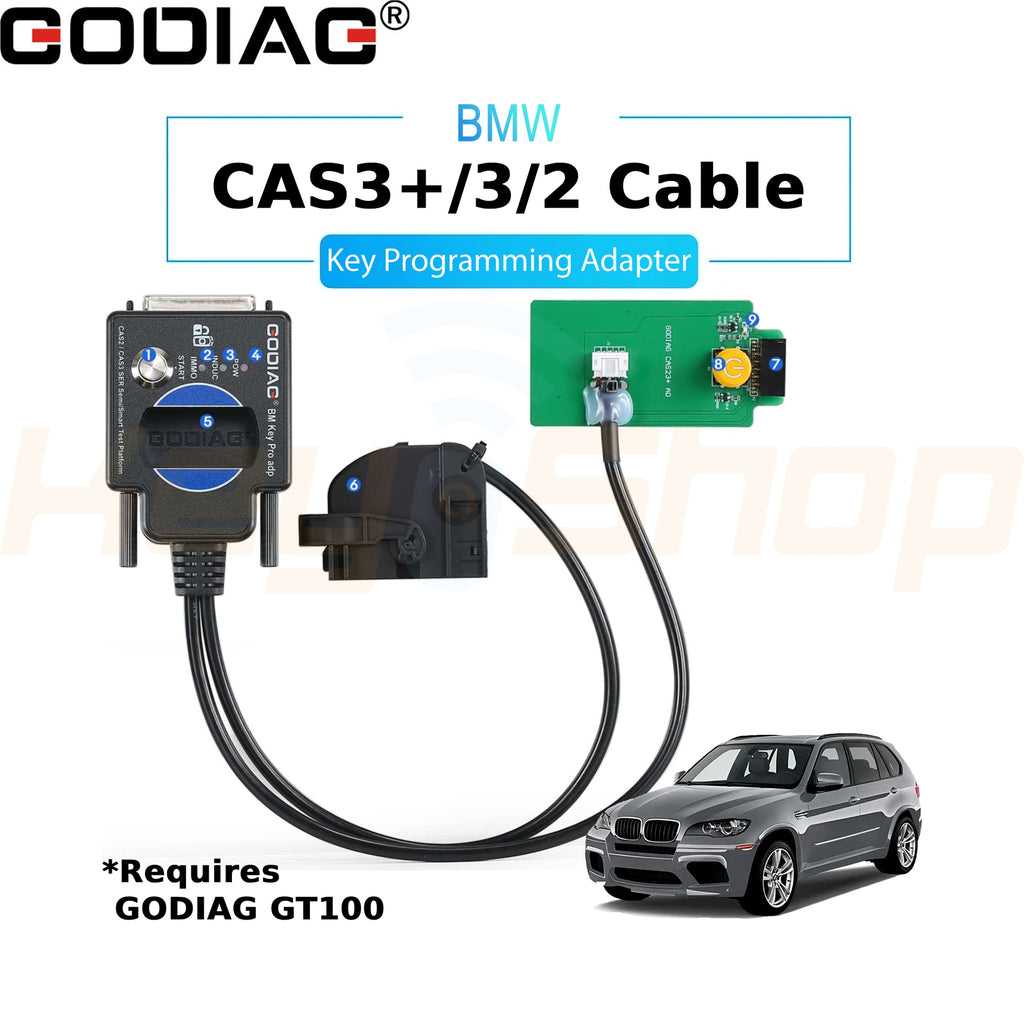

GODIAG CAS2 CAS3 SER Semi Smart Test Platform Features:
1. Detect CAS and key synchronization
2. Solder-free matching CAS2/CAS3 serial smart key
3. CAS data reading, writing and programming
4. All keys lost /adding keys matching
5. CAS key data backup
6. CAS module function judgment

GODIAG CAS2 CAS3 SER Semi Smart Test Platform Functions:
1.Check wheteher CAS2 / CAS3, CAS3+ CAS3++ modules and magnetic semi-intelligent/smart keys are synchronized.
2.Cooperate with the key programming devices like Xhorse Key Tool Plus Pad / Xhorse vvdi 2 / bmw vvdi bim tool / Autel im608 / CGDI BMW / Lonsdor devices, OBDSTAR devices, etc., to perform all key lost matching or key addition operations.
3.CAS2 / CAS3, CAS3+ CAS3++ module diagnostics
4.CAS2 / CAS3, CAS3+ CAS3++ module programming
Module and Key Synchronization Detection:
Check whether the CAS2 / CAS3, CAS3+ CAS3++ module and the magnetic semi-intelligent smart key can be synchronized:
Step 1: Connect the CAS2/CAS3, CAS3+ CAS3++ modules according to the connection diagram.

Step 2: Put the key into the key sensing area.
Step 3: Connect the power supply and the corresponding power indicator light will light up. The start/stop button light is on. The coil sensor light will flash. [Indicates that the module can send out the key sensing signal normally. If the key and the module are synchronized, the light will flash regularly or stay on. If the key and module are out of sync, the flashing will be irregular and will stop after one minute.]
Step 4: Press the start switch. [If the key is synchronized with the CAS module, the IMMO synchronization detection indicator light will light up and the internal buzzer of the machine will sound. If the key is not synchronized with the CAS module, the IMMO synchronization detection indicator light will not light up and the internal buzzer of the machine will not sound.]
Step 5: Press the analog start and stop button, the IMMO synchronization detection indicator light will go out after 3 seconds. Press the analog start/stop button again and the IMMO synchronization detection indicator light will light up.
GODIAG CAS2 CAS3 SER Semi Smart Test Platform Package Includes:
1pc x GODIAG CAS2 CAS3 SER Semi Smart Test Platform
